Use the Bar Chart view and comparison values in the Firstbeat Sports Coach app

The Bar Chart view lets you compare athletes' live data during a team session.
You can select a metric and compare current values with typical values for a
sport or with each athlete's previous sessions. The screenshots below show
the Coach app in landscape orientation on an iPad; the app can also be used
in portrait orientation.

Open the Bar Chart view

1. Open Live view in the Coach app.
2. Select Bars from the left-hand navigation.
3. Choose a metric from the Metric panel on the right. The example below
     shows TRIMP. Each horizontal bar shows the current value for one athlete.

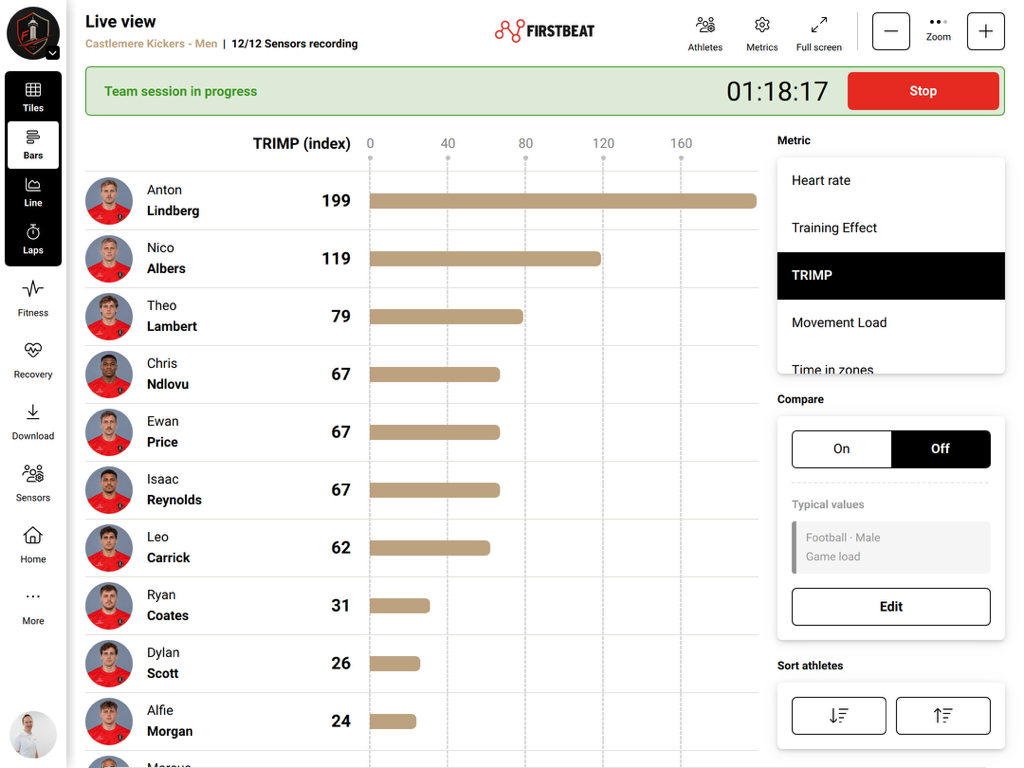

Bar Chart view with TRIMP selected and comparison turned off.

Compare with typical values

1. In the Compare panel, select On, then select Edit.
2. Under Typical values of selected sport, choose a load level: Low load,
     Moderate load, High load, or Game load.
3. Select the sport and the applicable female or male reference group.
4. Return to the Bar Chart view. The selected reference values appear as a
     highlighted range behind the athletes' current values. The Compare panel
     shows the selected sport, reference group, and load level.

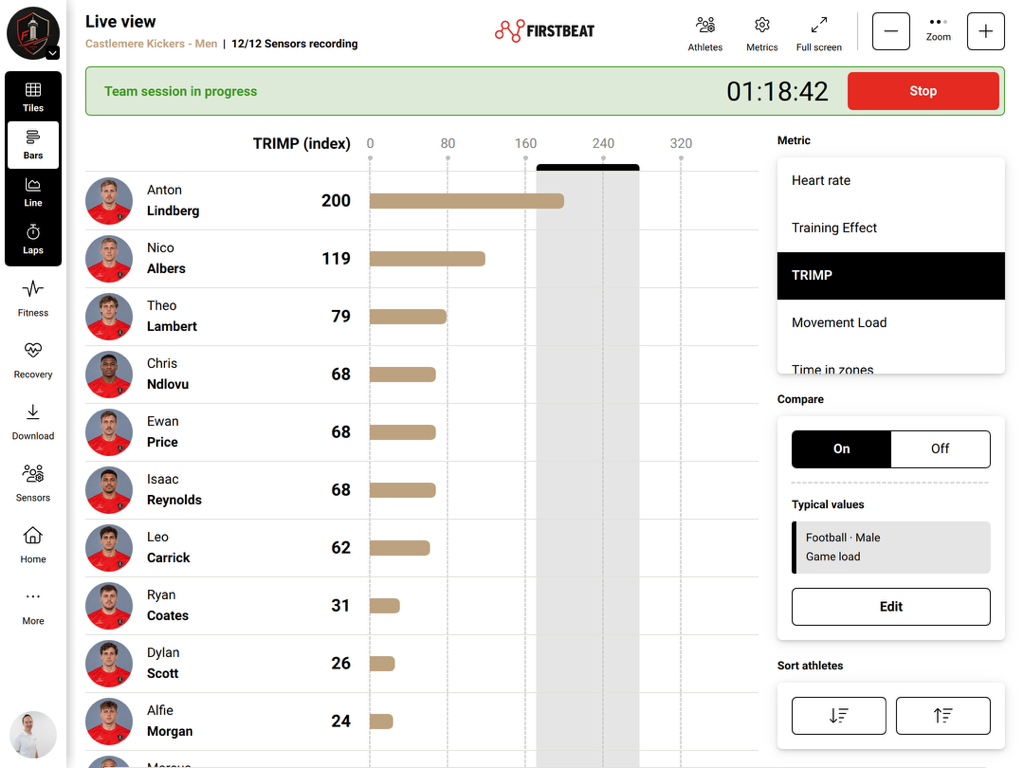

TRIMP values compared with the typical Football, Male, Game load reference range.

Compare with athlete history

1. In the Compare panel, select On, then select Edit.
2. Under History per athlete, choose Show all session data or Show specific
     session data.
3. If you choose specific session data, select the session title. Where
     available, use the date range and session-type filters to narrow the
     comparison.
4. Return to the Bar Chart view. Dots next to each athlete's bar represent
     values from the selected previous sessions. The Compare panel shows the
     active history selection.

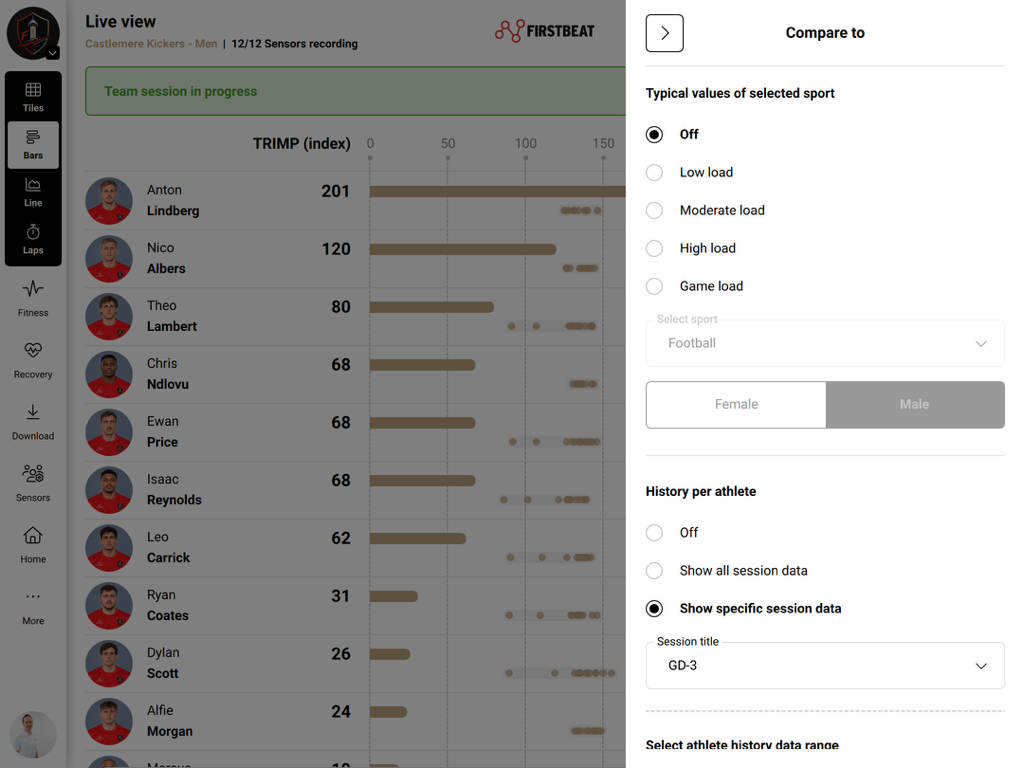

Compare to panel with athlete history set to a specific session title.

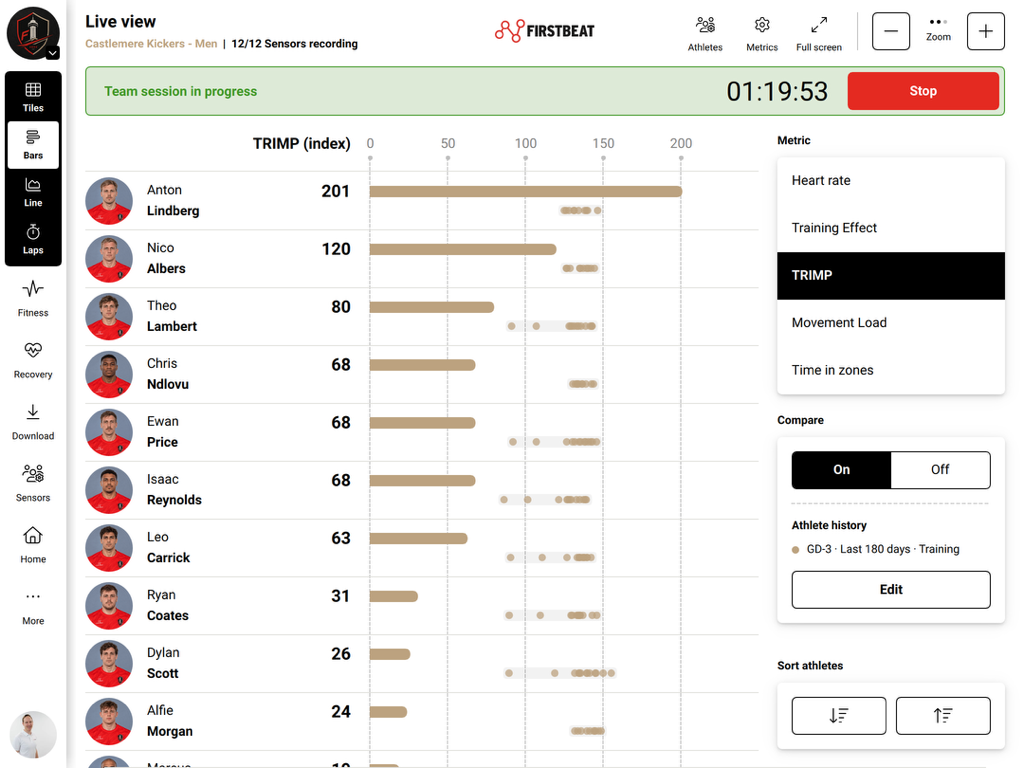

TRIMP values and dots for the selected athlete history.

To remove a comparison, switch Compare to Off. To change it, select Edit
and update the typical values or athlete-history options.

Other controls

• Use Athletes at the top of Live view to choose which athletes are shown.
• Use Full screen at the top to expand the view.
• Use Sort athletes in the right-hand panel to change the athlete order.
• During a team session, the session timer and Stop button appear at the
   top of Live view.
